Product Name: Full Aluminum Chassis 2109 Power Amplifier Chassis (Complete Version)
Product Dimensions:
- External Dimensions: Width 211mm x Height 90mm x Depth 257mm
- Internal Dimensions: Width 161mm x Height 84mm x Depth 246mm
Product Weight: 2.3kg
Product Material: Full Aluminum
Product Model: 2109
Product Introduction:

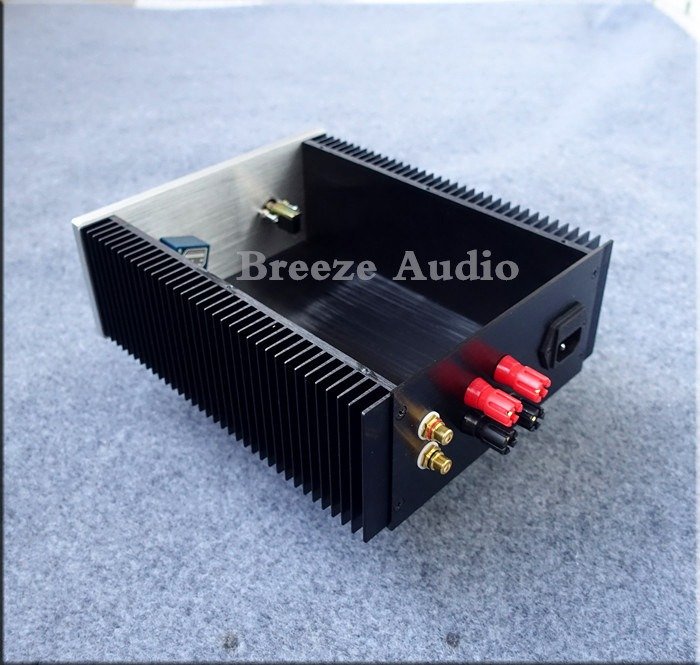

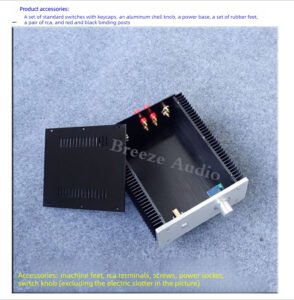

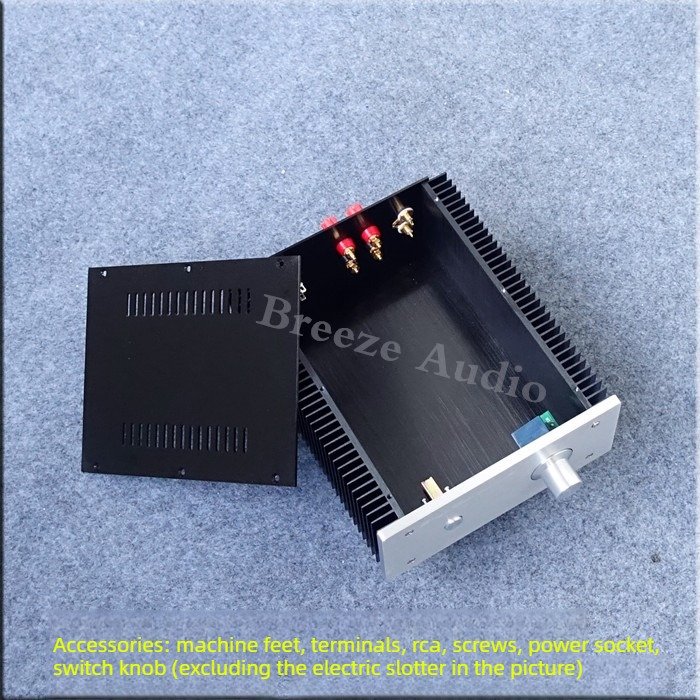

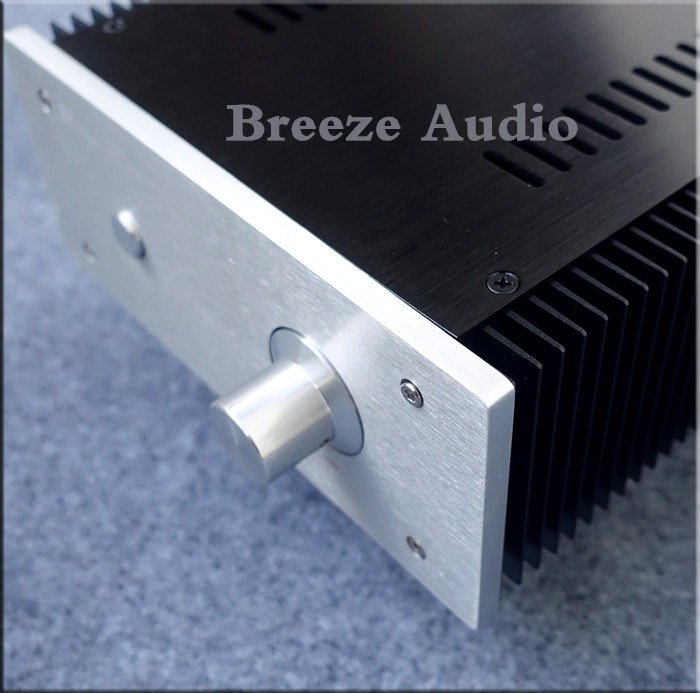

Machined from full aluminum material using CNC milling. The surface adopts brushed anodizing treatment, which is fade-resistant. As shown in the pictures, openings include:Material Specifications: Front panel 8mm, Rear panel 3mm, Top panel 2.6mm, Bottom panel 2.6mm, Heatsink: 84mm high x 246mm long, Base plate thickness 5mm.
Cutouts: Power switch hole diameter 16mm, Volume control hole diameter 39mm. On the rear panel: RCA jack holes diameter 11.5mm, Terminal post holes diameter 10.5mm.
