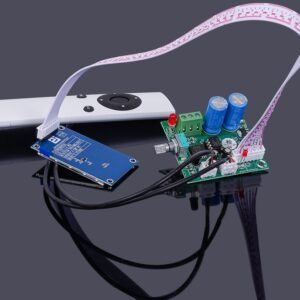

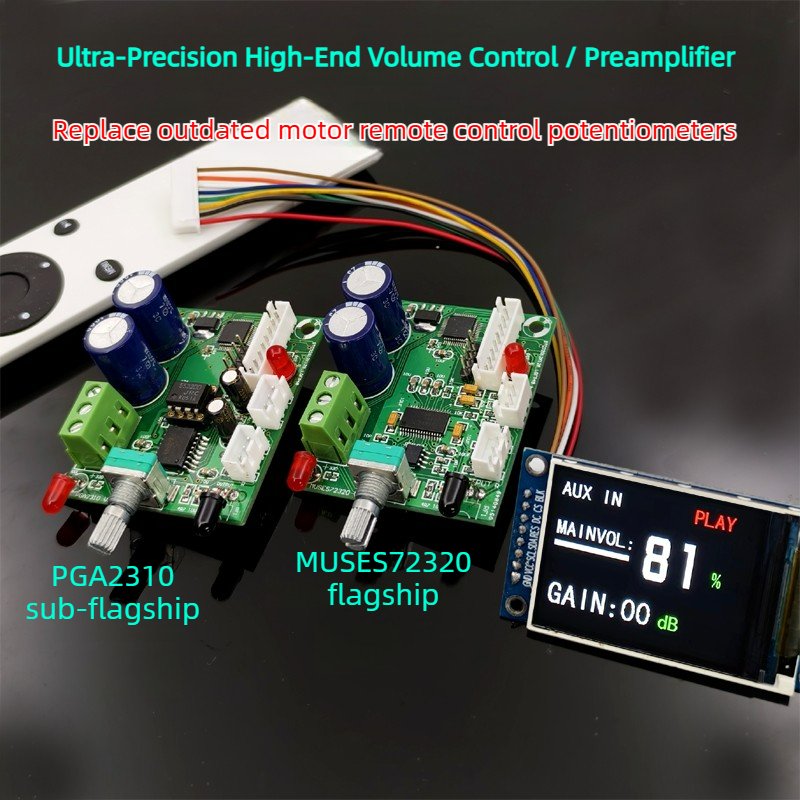

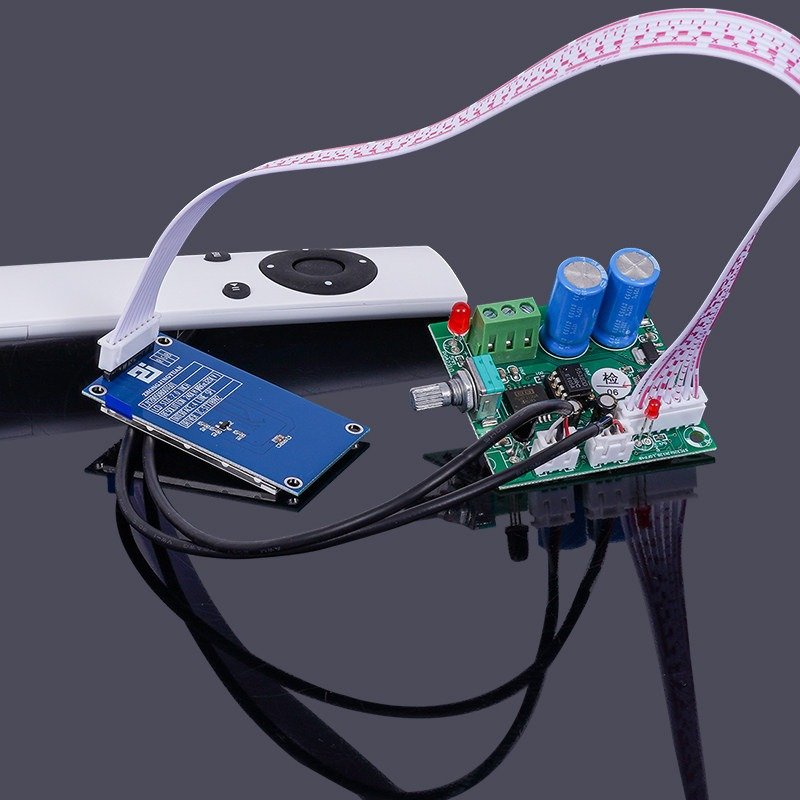

PGA2310 MUSES72320 Flagship Remote Volume Controller/Preamplifier

Note: The PGA2310 and MUSES72320 boards can be used as a volume potentiometer or as a preamp. When the GAIN is set to 0, the gain is 0 DB. This is equivalent to a pure potentiometer. When the GAIN is set to greater than 1, it can be used as a preamp, with a gain of 3-21 DB. There is no need to set it too high, otherwise the signal will be too strong and cause the rear stage to saturate. It is better to set it within 12 DB.

There are two methods to set the GAIN. The first method is to use the gain button on the remote control. Press it once to switch one gain level. The display screen will show the corresponding indication, and the LED on the board will also show the corresponding indication.

The second method is to directly press down the volume potentiometer without rotating it. This will also switch the GAIN level, which is very convenient.

Weight: approx. 46g
