TPA3255 Bluetooth High Power Digital Amplifier (300W + 300W)
Product description:
The TPA3255 is a high-performance class D power amplifier chip that is class D efficient and delivers truly high-end sound quality. The device features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath ™ ultra-high definition). This technology allows the device to maintain ultra-low distortion over the entire audio band while delivering great sound quality. The device operates in AD mode, capable of driving up to two 315W/4R loads and two 150W (unclipped power)/8R loads at 10% THD, and features a 2 VRMS analog input interface that supports seamless connection with high-performance DACs (e.g. TI's PCM5242). In addition to excellent audio performance, the TPA3255 also combines high power efficiency with ultra-low power stage idle losses (below 2.5W). This can be achieved with an 85mR MOSFET and an optimized gate driver scheme, which significantly reduces idle losses compared to traditional discrete implementations.
Product Specifications:
This machine is developed and produced according to standard products, all parts are original and genuine, with QCC3034 Bluetooth 5.0 chip to achieve wireless music playback and various portable products. This machine is directly powered by 220V power supply, which is convenient to use. The all-aluminum chassis is fine in workmanship and guarantees good heat dissipation.
nUsing the original TPA3255 chip
nBuilt-in high-power HIFI dedicated high-efficiency switching power supply, directly plugged into 220V
nThe resistor adopts high-precision chip resistor to ensure a good signal to noise ratio of the whole machine.
nThe use of audio-specific inductance to ensure that the sound is crisp and powerful.
Basic performance parameters:
Working method: Class D
Working voltage: AC 100-240V (international voltage can be used)
Quiescent current: 60mA
Work efficiency:. > 90%
Output power:
300W/4Ω, distortion 10%
175W/8Ω, distortion 10%
260W/4Ω, distortion 1%
150W/8Ω, distortion 1%
175W/8Ω, distortion 10%
260W/4Ω, distortion 1%
150W/8Ω, distortion 1%
Frequency Response: 20Hz to 20KHz
Bluetooth protocol: sbc/aac/aptx/aptx-hd
Dynamic range: > 100 dB
Signal to noise ratio:(SNR) > 111dB
Machine size: 183 * 52 * 189MM
Weight of the whole machine: 1.45KG with packaging, express fee will be charged at 2kg.

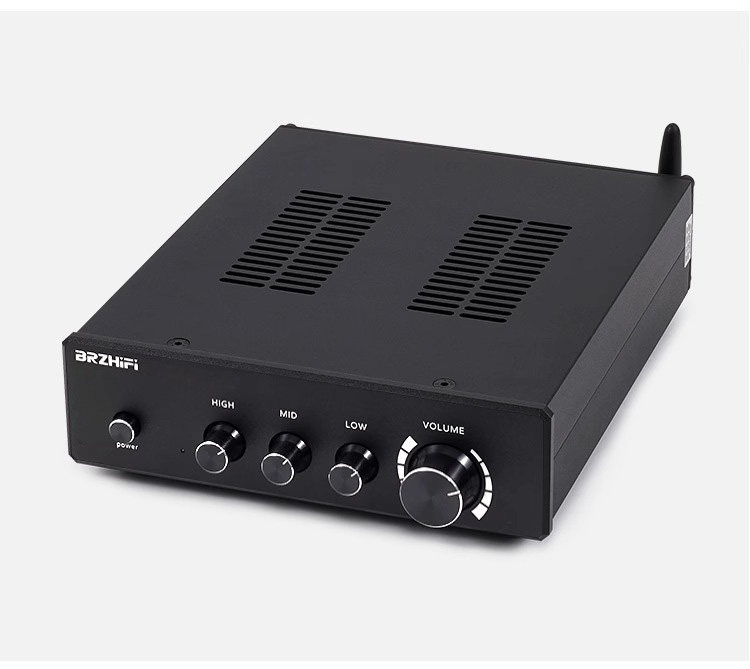

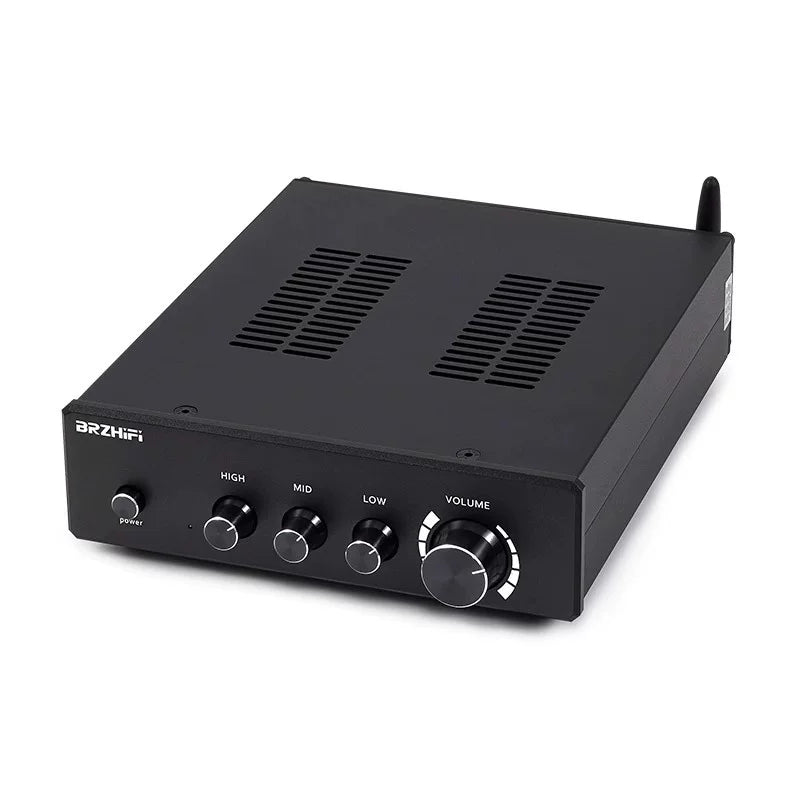

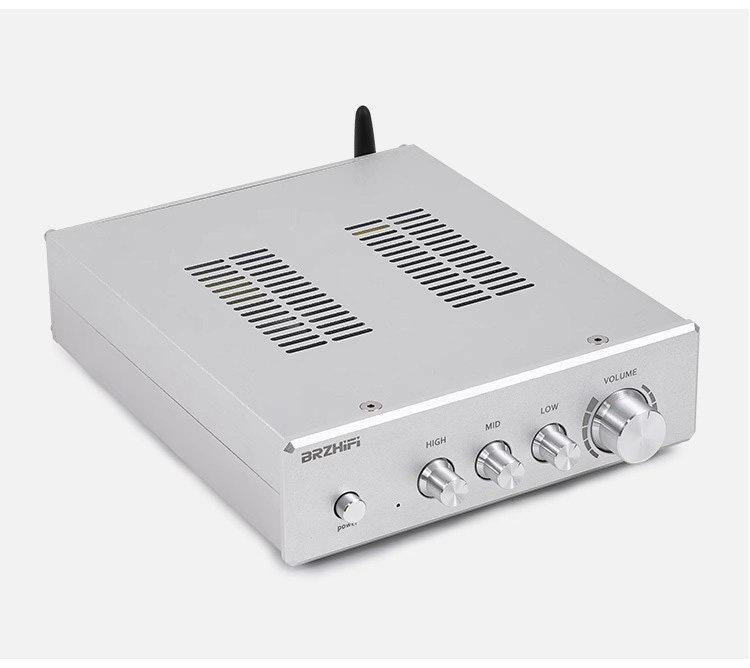

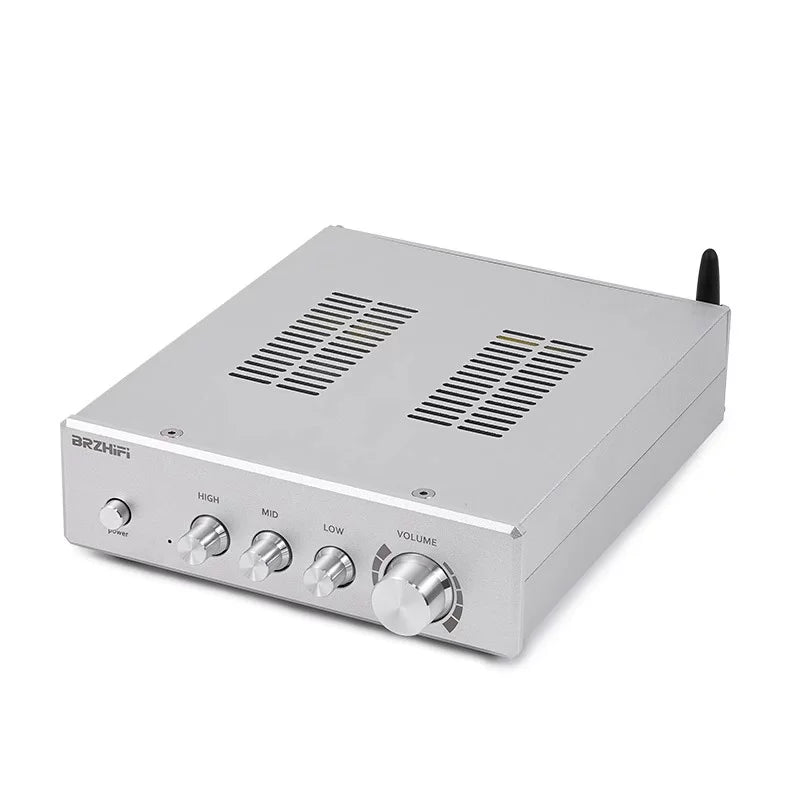

MID------ Midrange adjustment
LOW----- bass adjustment
VOLUME---total volume adjustment
ON/OFF----Power switch

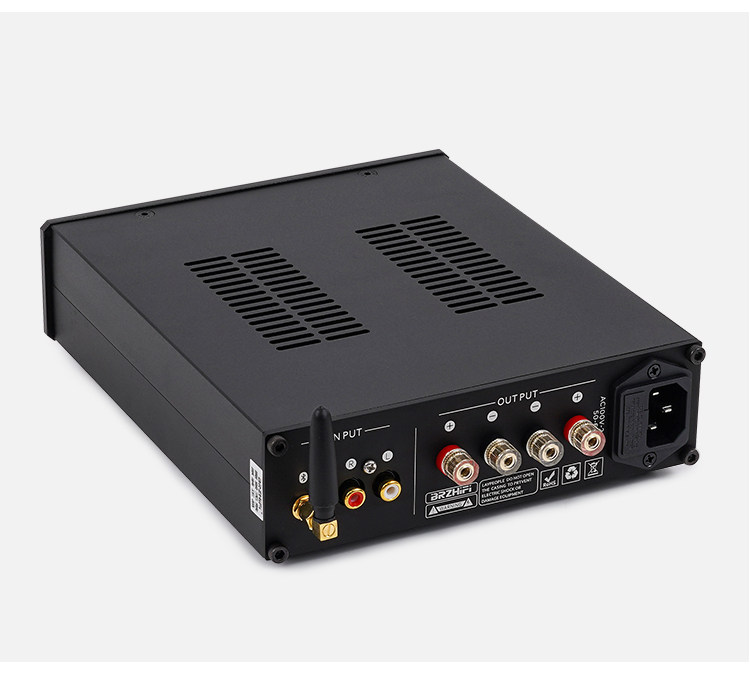

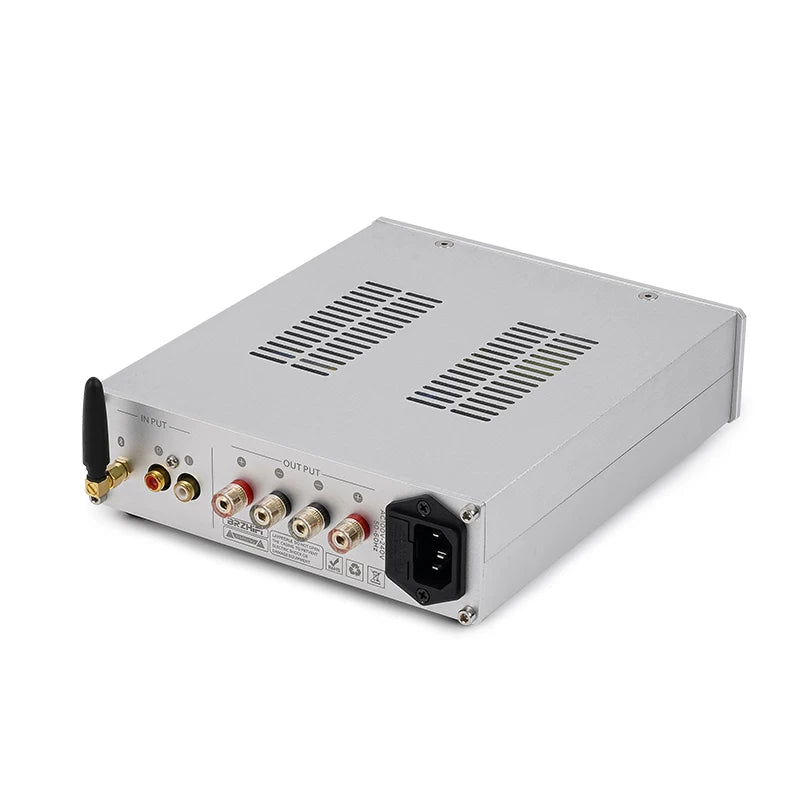

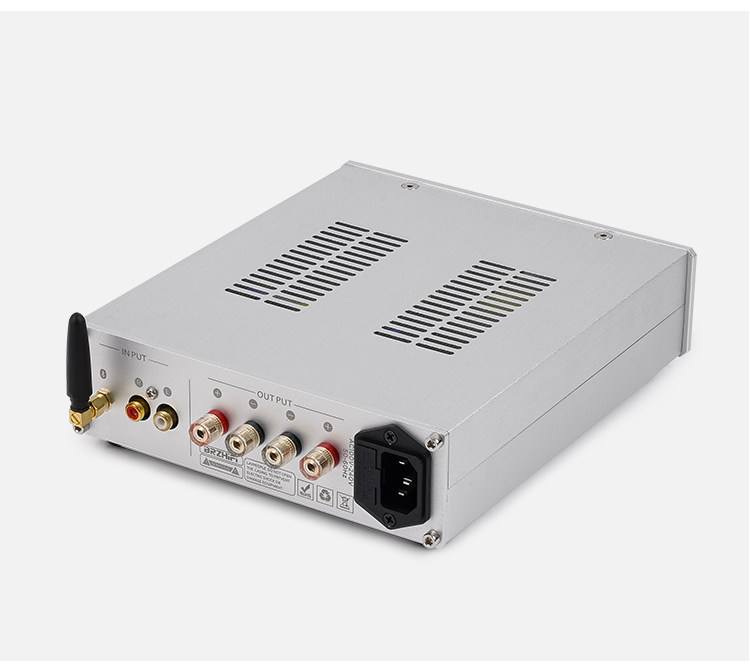

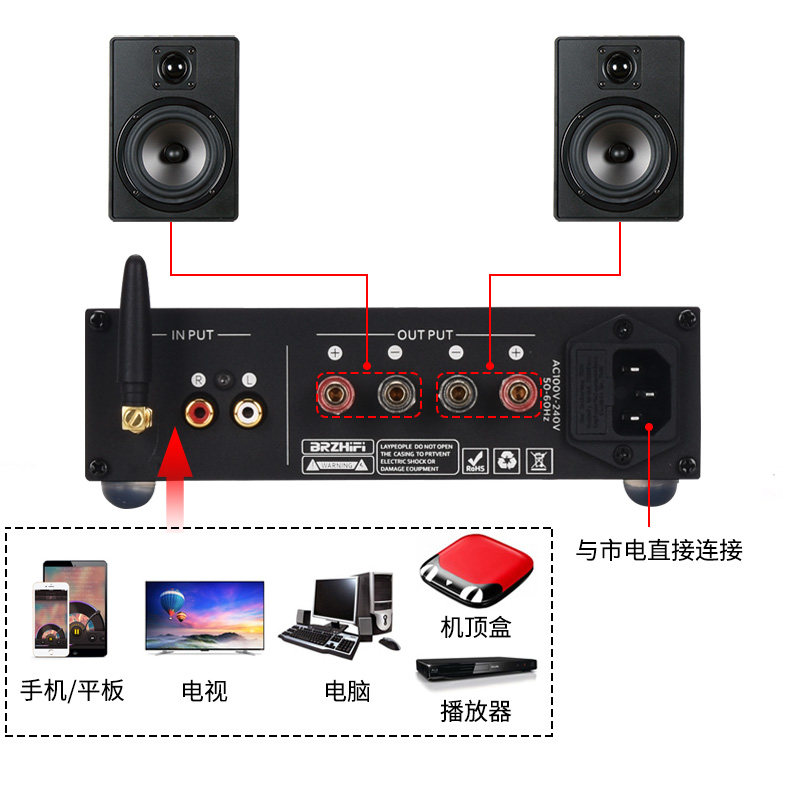

INPUT----RCA audio input

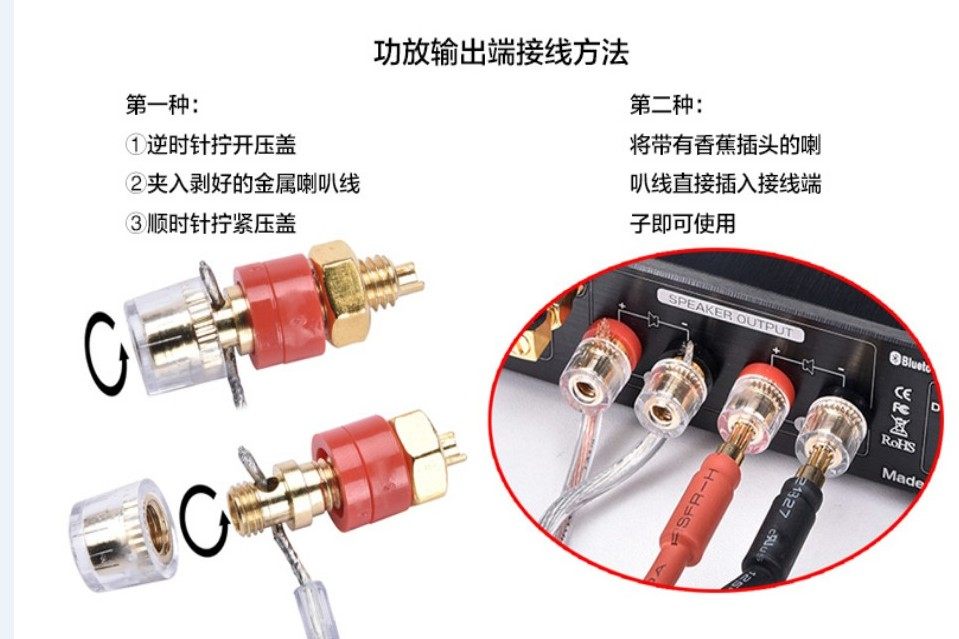

OUTPU---- audio output, connected to the speaker terminal
AC 230V----Power cord plug, compatible with AC 100-240V

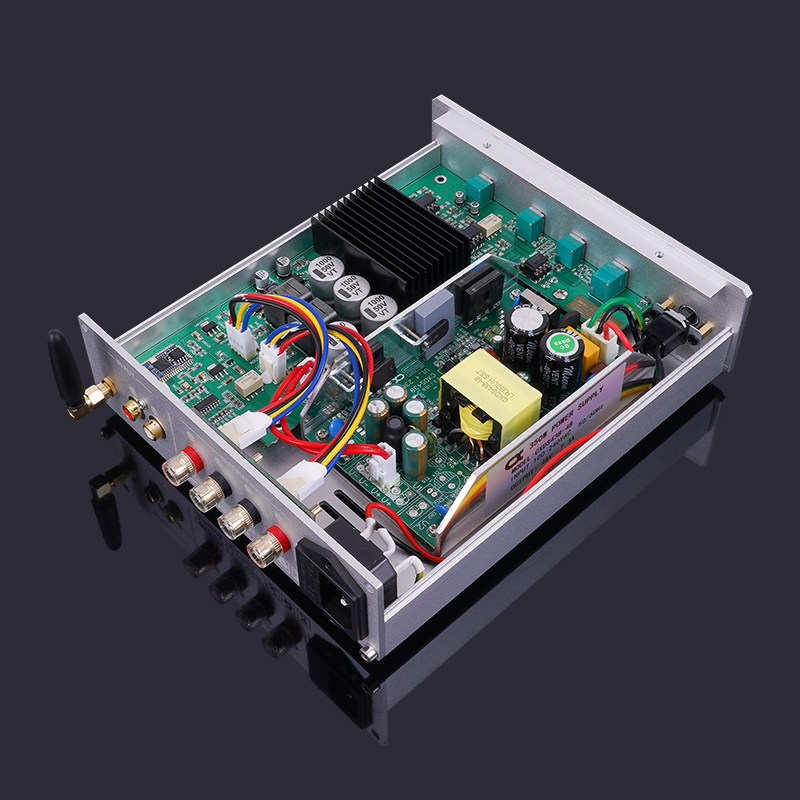

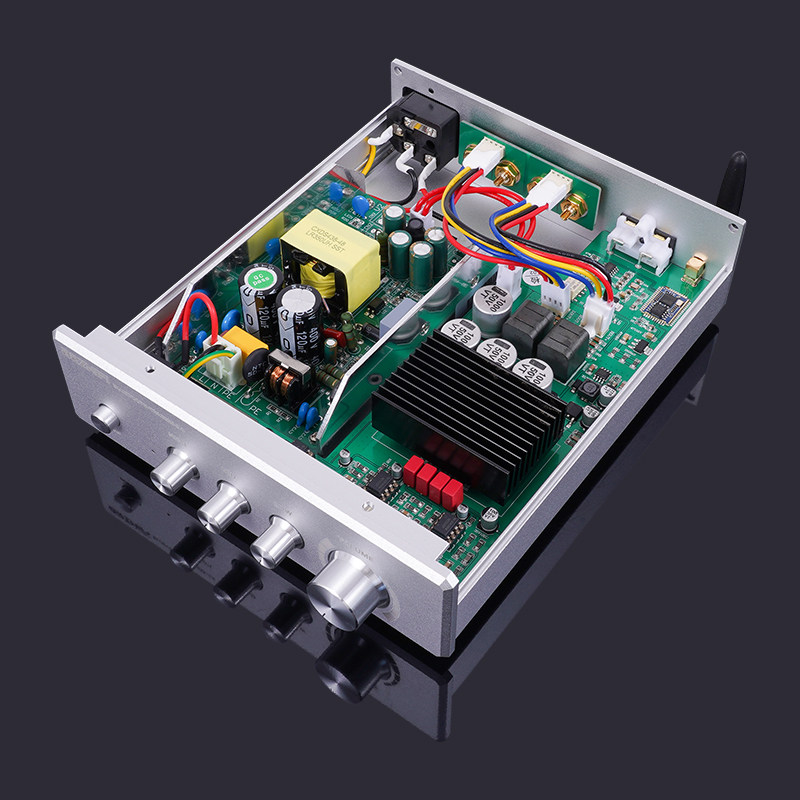

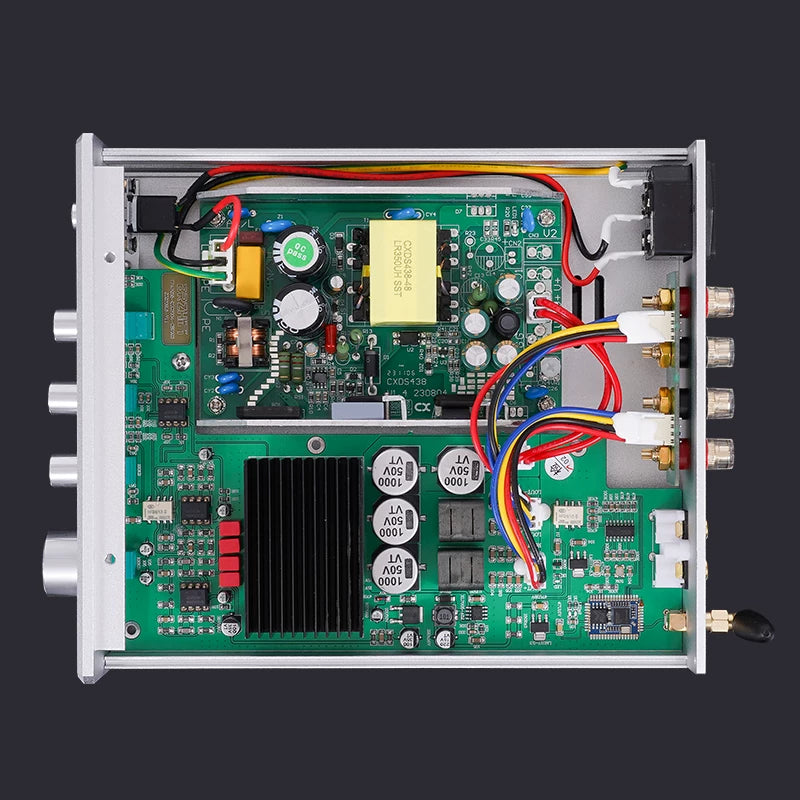

Internal real materials, all imported filter capacitors, German red WIMA, NE5532 operational amplifier, sealed high-precision potentiometer, Japanese Omron relay, etcTrue Bluetooth 5.0 receiver + independent audio decoder, the sound quality is lower than the direct output distortion of the mobile phone, and the level of detail is betterHIFI pre-amplifier circuit, high, medium and low three-stage equalization adjustment
