Description
x

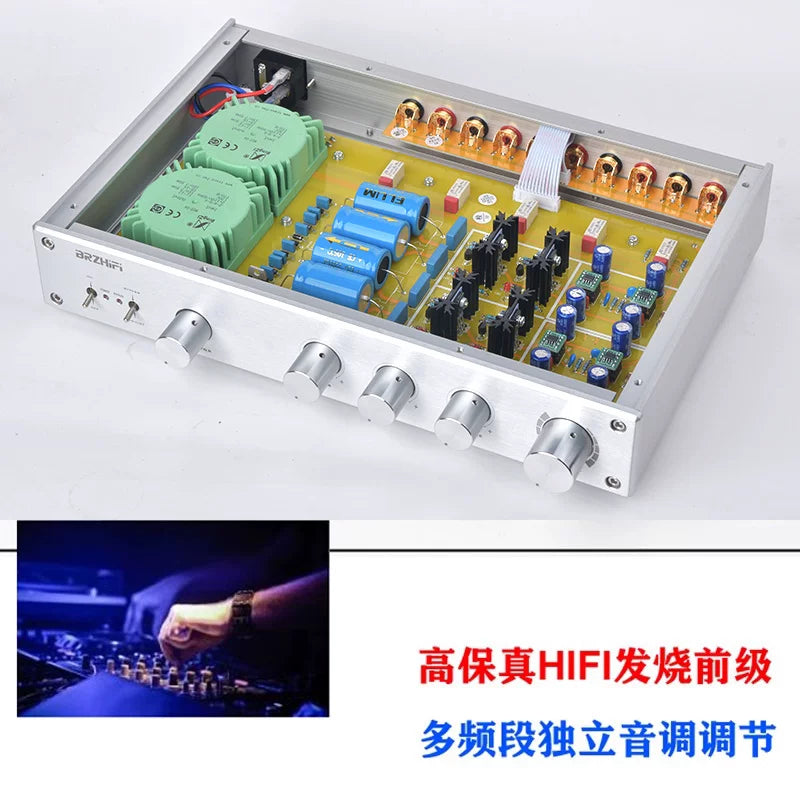

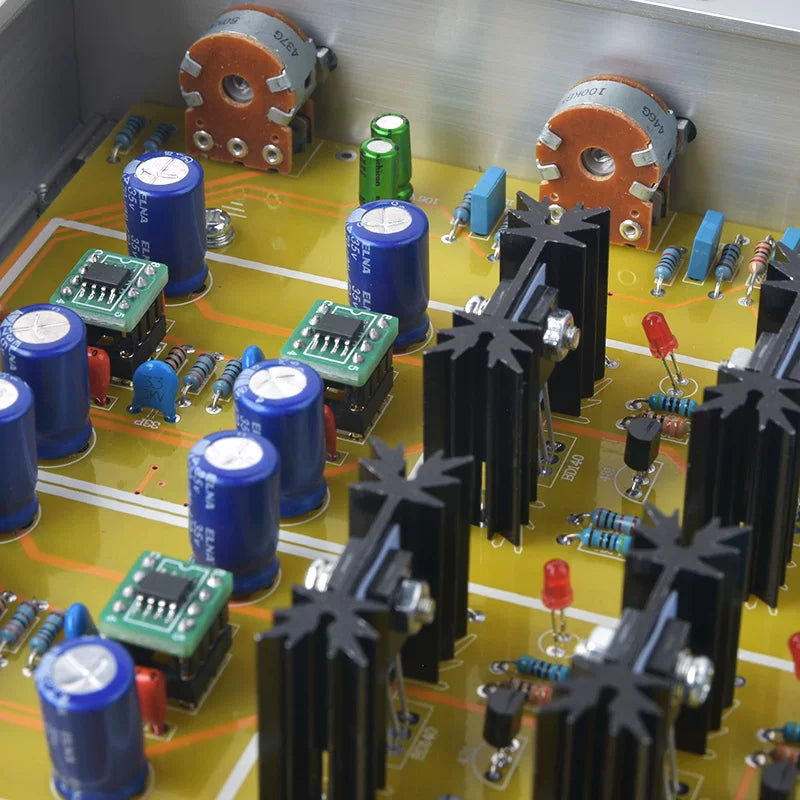

The standard operating amplifier of this machine is 4 single operating amplifiers (two single operating amplifiers are used for each channel)

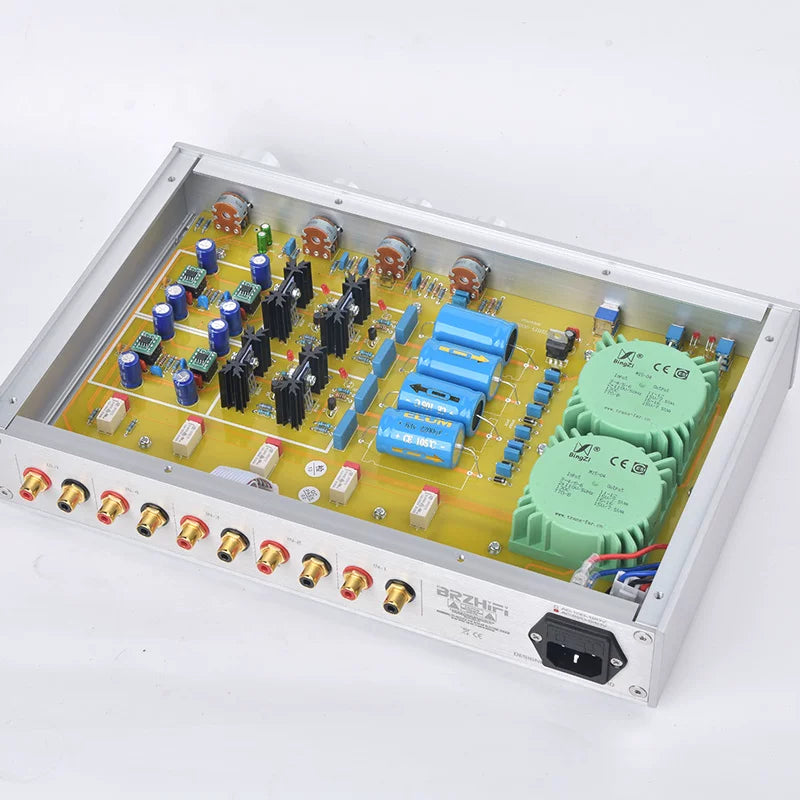

Dual transformer power supply, complete independence of left and right channels
FV-2020/2024 both use ALPS 16 volume potentiometers and B-type tone-specific potentiometers
The following is the introduction of FV-2024:
The FV-2024 adopts the STK3048 packaged in Sanyo thick film as the pre-amplifier, and the internalDual operational amplifier structure, the highest voltage can reach ± 50V, which can significantly improve the dynamic range of music, with minimal harmonic distortion. In actual tests, the treble becomes more transparent and delicate than the general operational amplifier, and the bass becomes elastic, sounding very comfortable. This is not the effect that ordinary operational amplifier circuits can achieve.
The STK3048 is a two-channel single-column thick film package with a total of two stages inside, and the input stage is protected by a differential amplifier. The resistor-capacitance series phase compensation network of the collector can prevent the transient distortion of the input stage due to burst signals. A set of mirror current sources is connected between the two collectors. The main voltage amplification stage is a common base and common emitter circuit. The upper tube amplifies the signal wideband and provides impedance matching for the direct coupling between the input and output stages; the lower tube linearly outputs the amplified current of the upper tube to reduce the open-loop distortion of the stage and provide a large excitation power to the subsequent stage. The two-stage amplifying tubes are supplemented by a constant current source as a load, which has strong suppression of power supply ripple.
The famous sealed green Rubik's cube transformer has high efficiency, small magnetic leakage and good output characteristics

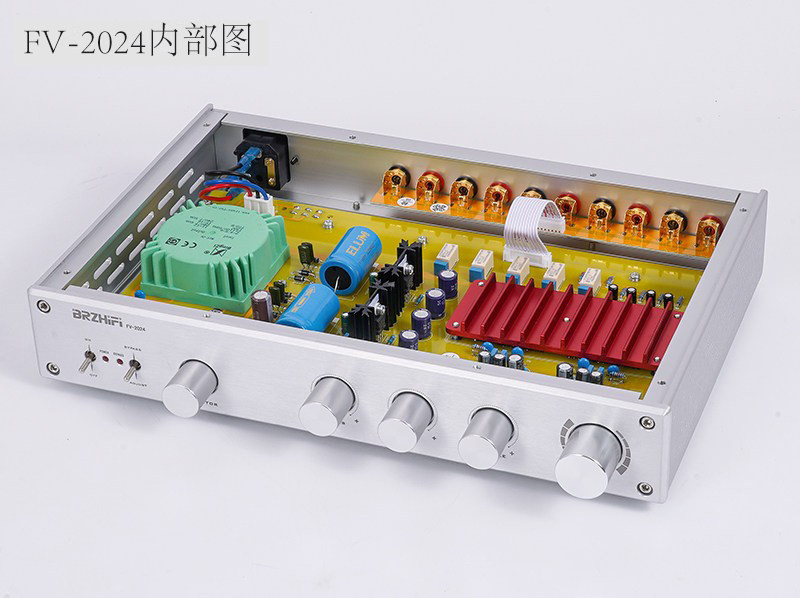

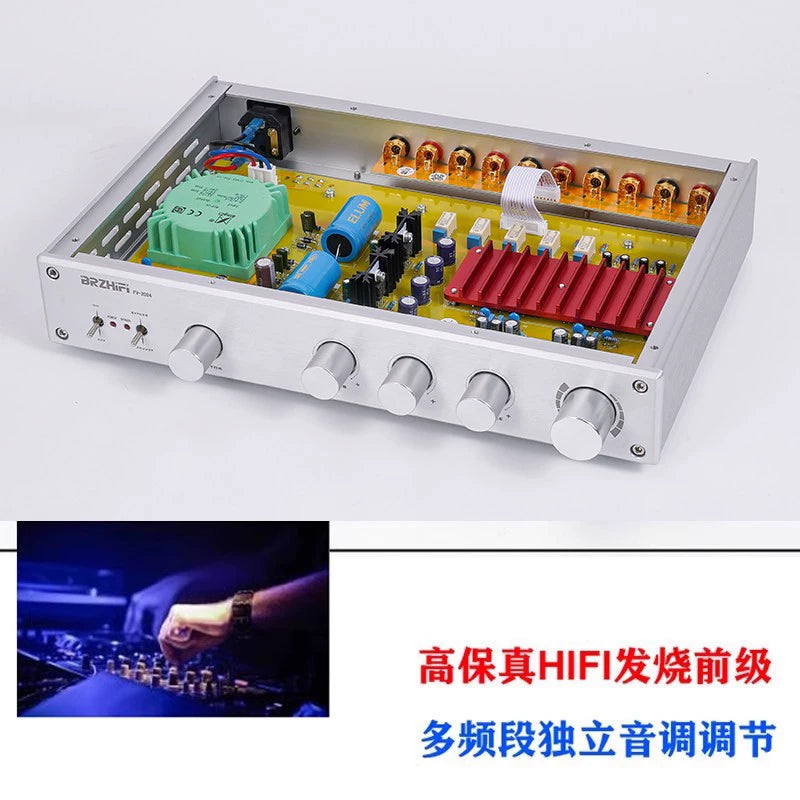

The bottom of the red heat dissipation is the STK3048 module, and the periphery is equipped with ELNA, Siemens and other audio capacitors

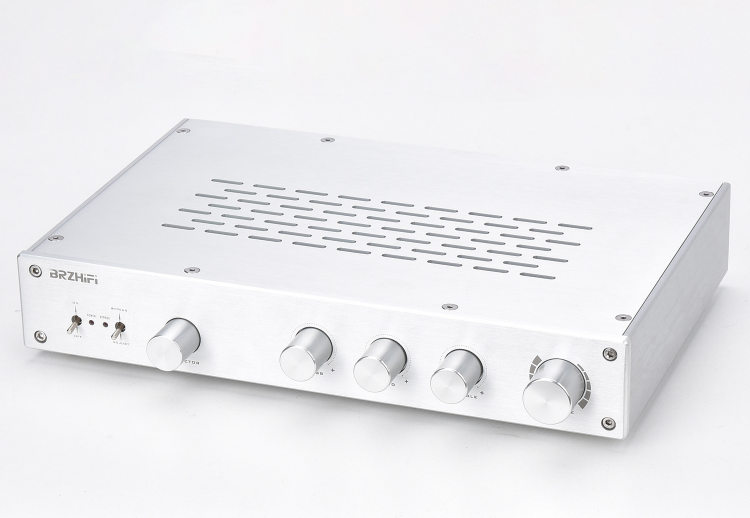

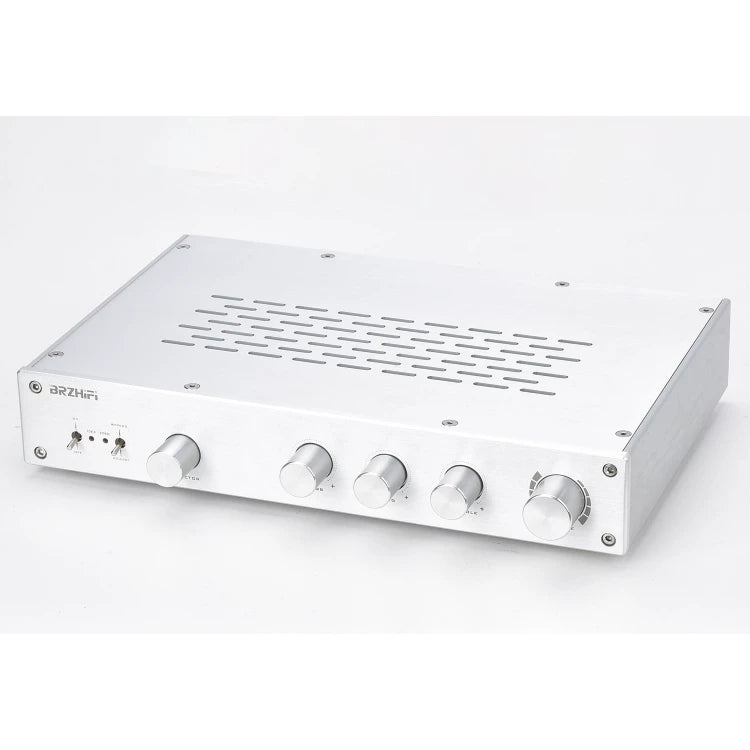

All use solid all-aluminum knobs, full of texture

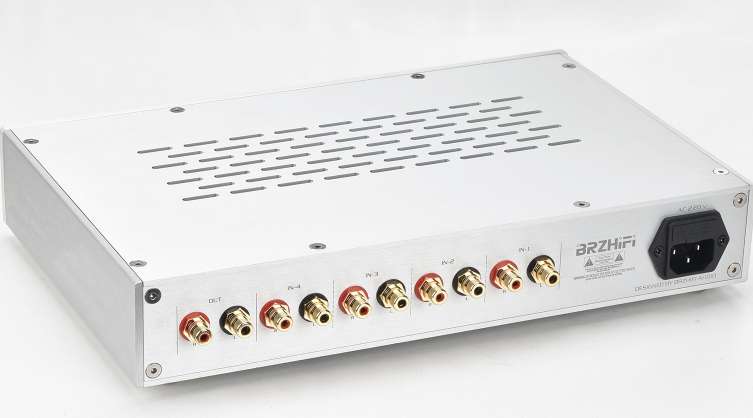

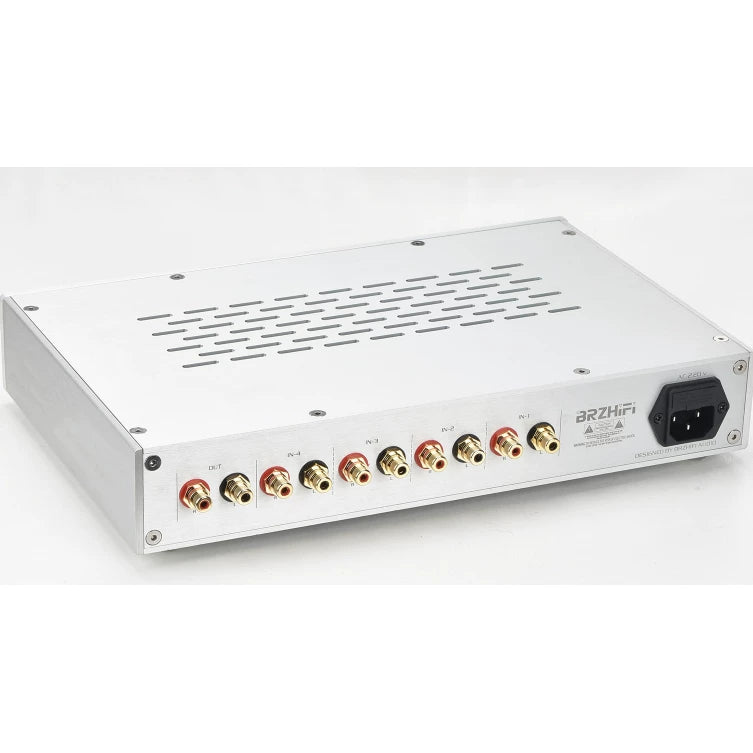

Custom Real Gold Plated RCA Terminal Blocks
