Classic thick-film STK4042II high-power amplifier board – Hi-Fi audiophile-grade finished board

Sanyo STK is commonly known as Sanyo Thick Film. Under the control of the tuned sound and high-precision semiconductor process production process, it is not the level that ordinary amateur DIY players can achieve. In addition to better sound field and resolution, the low-frequency intensity is much stronger, which is completely the difference between professional athletes and ordinary players! These thick film circuits have always been customized products for big brand audio manufacturers. In the early days, many famous factories used them to manufacture power amplifiers, such as K + H, Sony Sony, Panasonic PANSONIC, KENWOOD, JEVIS JVC, Shanshui SANSUI, Sharp SHARP, Pioneer PIONEER, Aihua AIWA, etc. Almost all Japanese audio manufacturers use them, and they have been used for more than 20 years, which has influenced a whole generation. It is also a sound with a strong era brand that our entire generation heard when they were young. It always sounds unforgettable. Sanyo, a company specializing in the production of power amplifier modules, was later acquired by ON Semiconductor of the United States. After the acquisition, it integrated Sanyo's traditional craftsmanship, coupled with ON's unique design, and the later products were even more outstanding. They are still used by large companies in the United States, such as BOSE and Genelec in Europe!

Fortunately, I came across a batch of new inventory of the power amplifier module STK496-090 produced by Sanyo SANYO in the later stage, which is a more classic sound of the old Sanyo. Unfortunately, in the later stage, coinciding with the vigorous development of the Internet and the large-scale popularity of various portable devices (especially large-screen touch-screen mobile phones), many people gradually forgot these high-performance desktop devices. Those once famous audio manufacturers had to change their product direction, making these customized products dusty in the original SANYO packaging factory warehouse in the Philippines, staying for more than ten years.

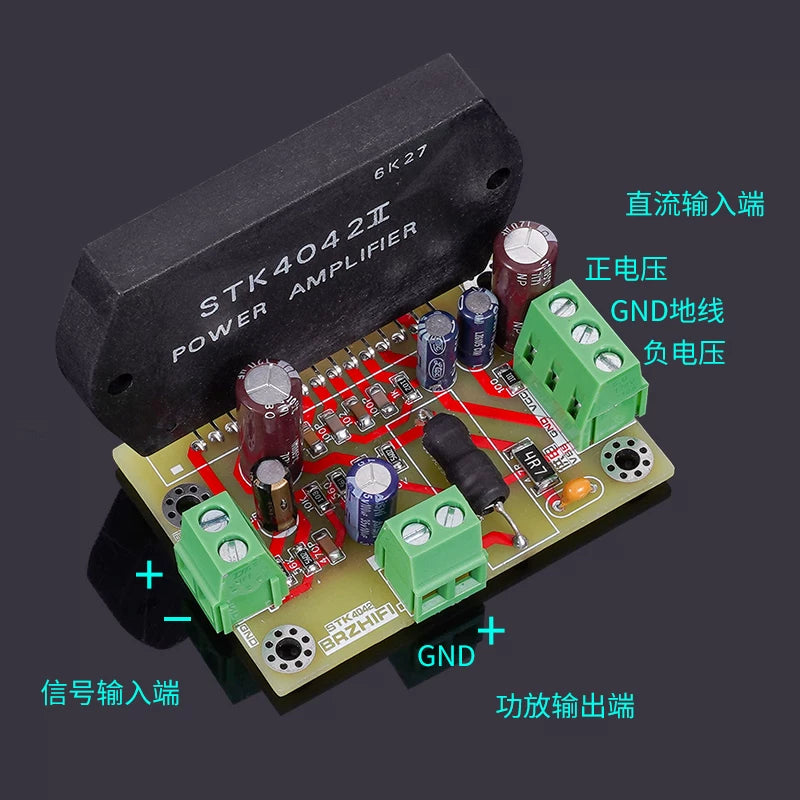

   The board is a simplified version, with rectifier and filter capacitors removed, direct DC positive and negative voltage input, achieving a very small size.DIY is also very simple, the whole board has been tested, no debugging is required; the output does not have a protection circuit by default, and is added according to personal usage; this product is a good choice for DIY, upgrading and modifying speakers.

STK4042 module for mono 80W 8Ω output, stereo requires two boards

Supply voltage: DC ± 45V to ± 63V

Output power: 80W8Ω (measured undistorted power under DC60V power supply)

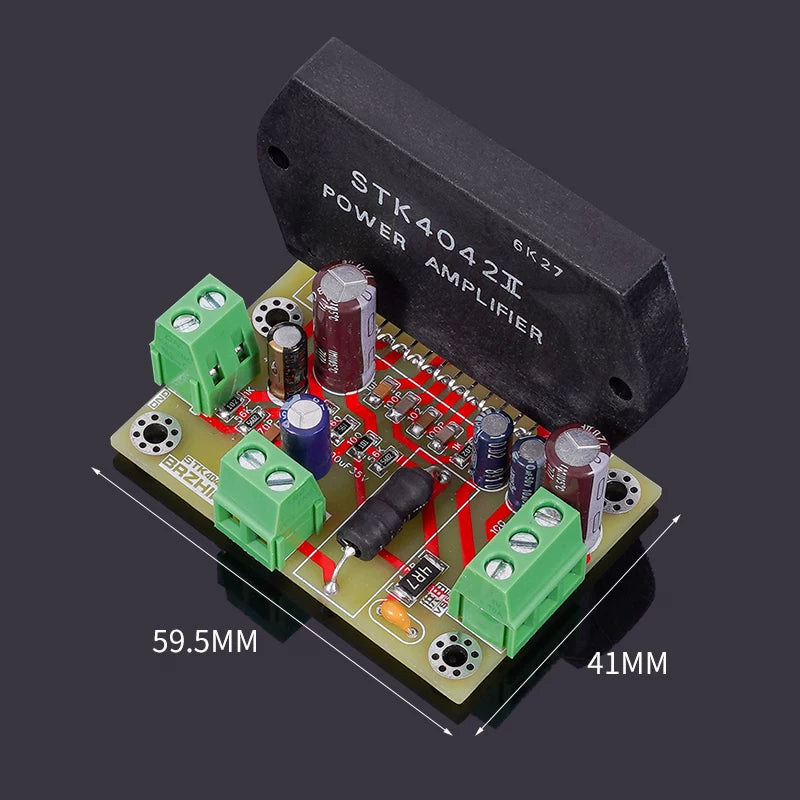

Size: 59.5 * 41mm

Accessories: Copper column nut * 4, screw * 2

The finished board is tested and shipped, and a radiator needs to be added after arrival. It is not artificially damaged, and the warranty is 3 months.

DIY is very simple, the whole board has been tested, no need to debug; DIY, upgrading and modifying speakers are all good choices.

Power supply voltage: AC dual 32-44V filter capacitor default 63V

Output power: 80W 8Ω (measured undistorted power under DC60V power supply)

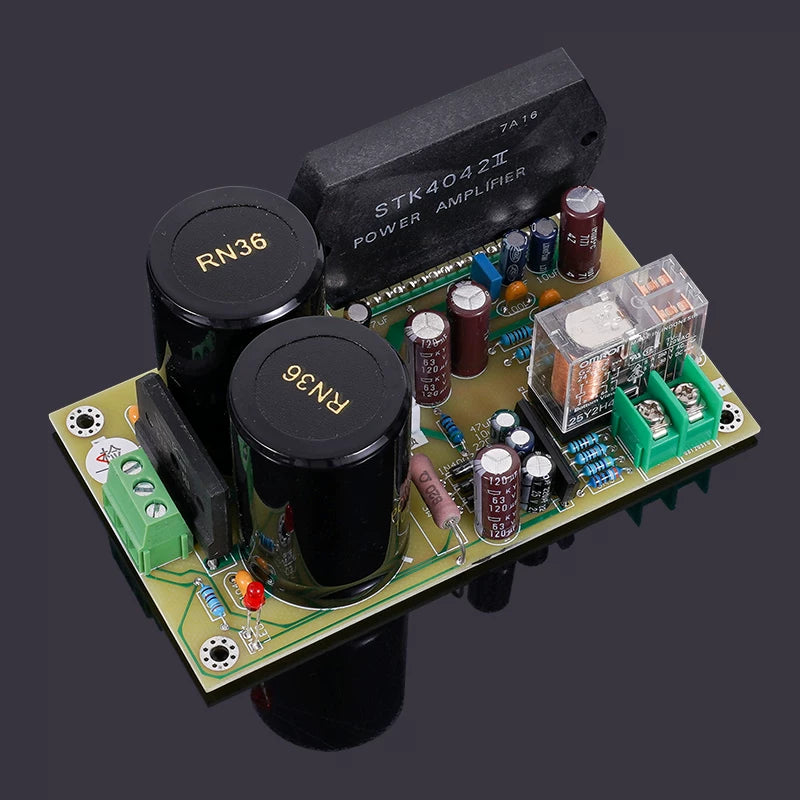

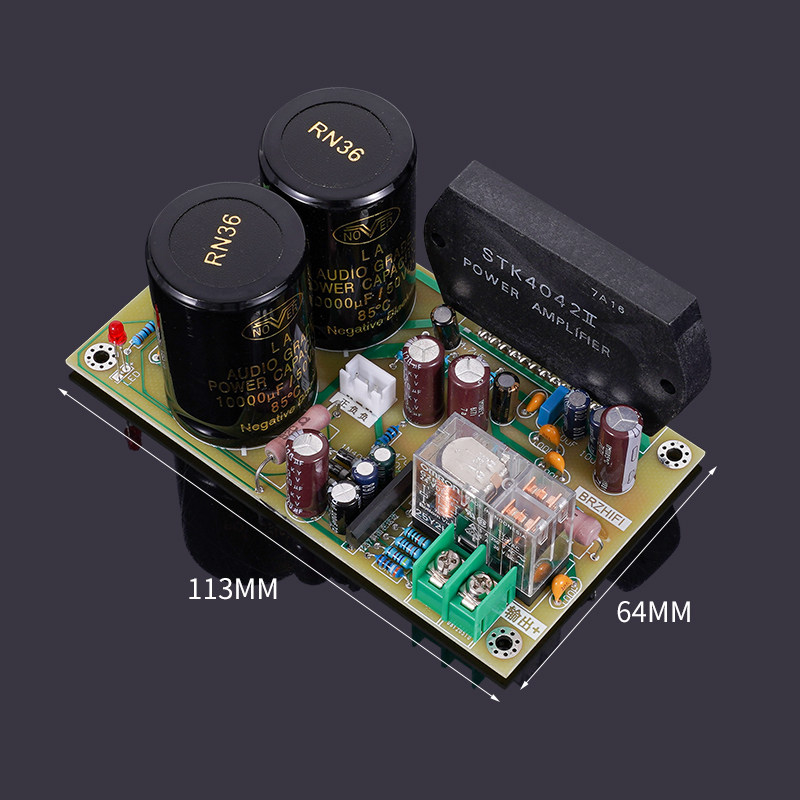

Size: 113 * 64mm

Weight: 191g

Accessories: Copper pillar nut * 4, screw * 2, three-core shielded cable * 1

    The finished board is tested and shipped, and a radiator needs to be added after arrival. It is not artificially damaged, and the warranty is 3 months.
