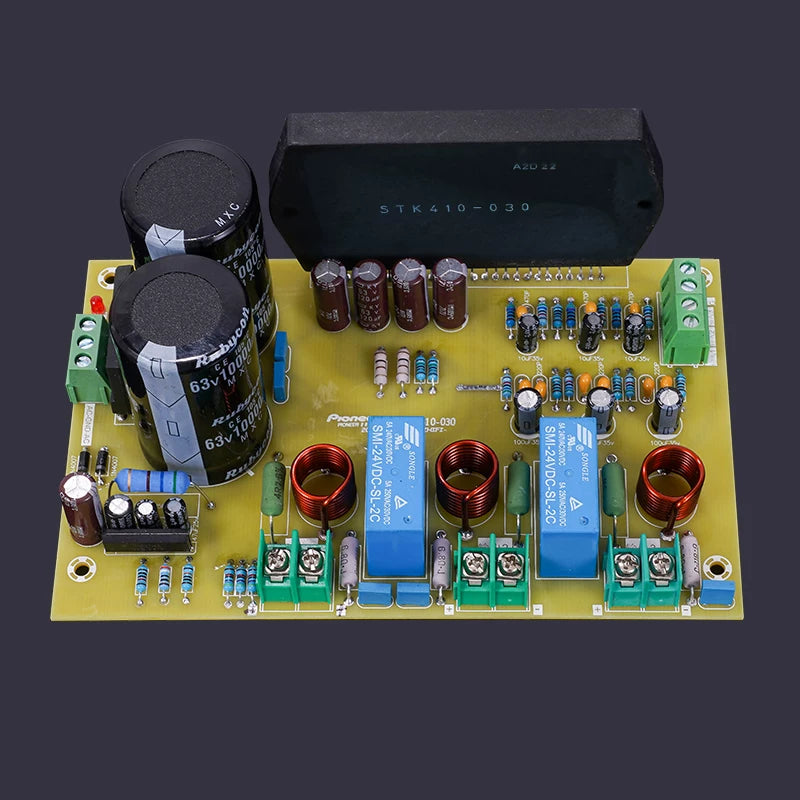

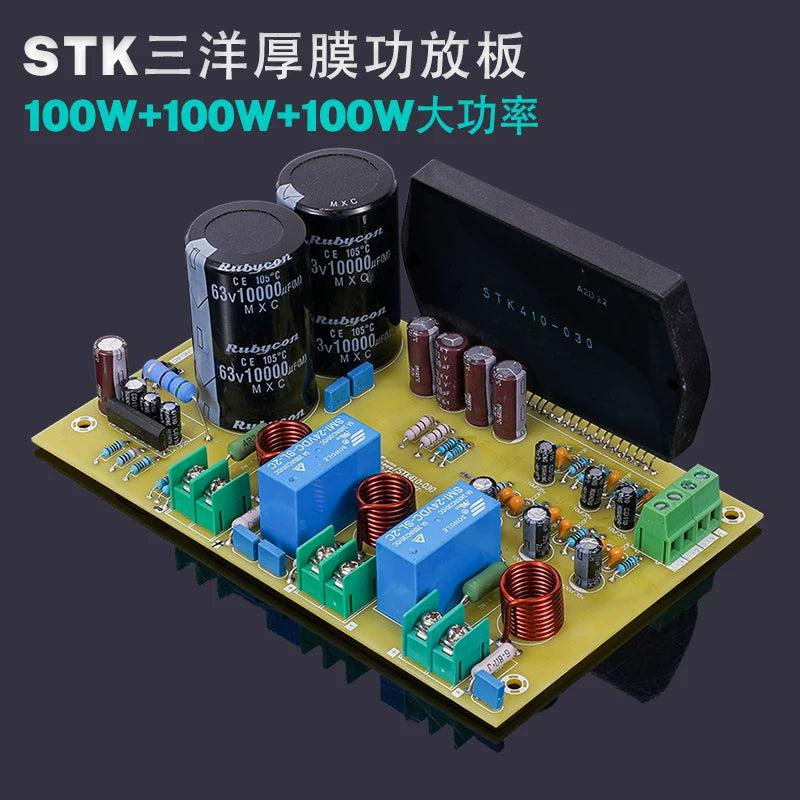

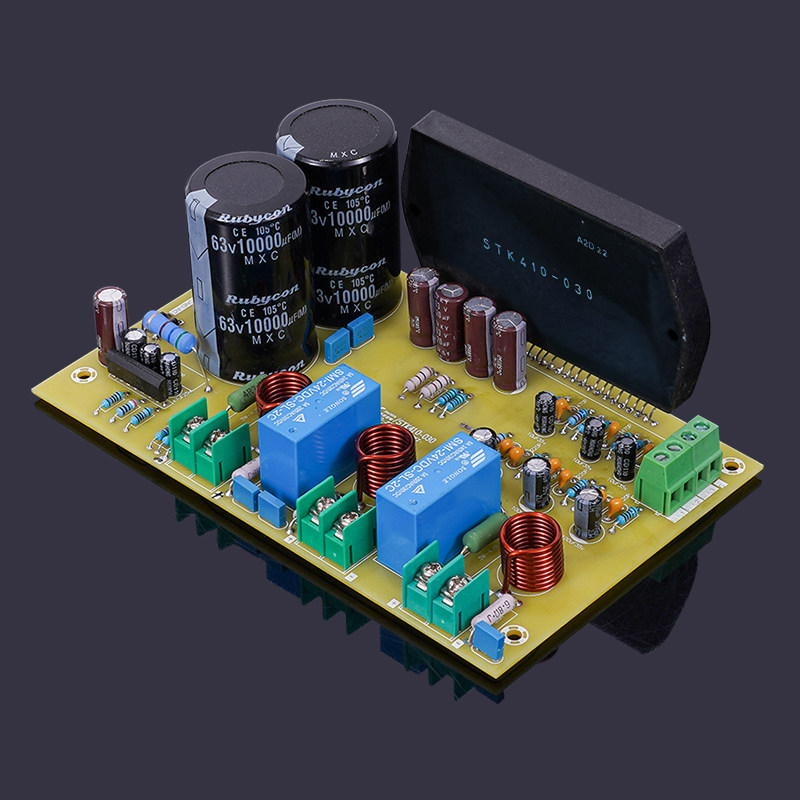

STK410-030/PAC011A Thick film module hifi fever power amplifier finished board, can set 2.1 channels

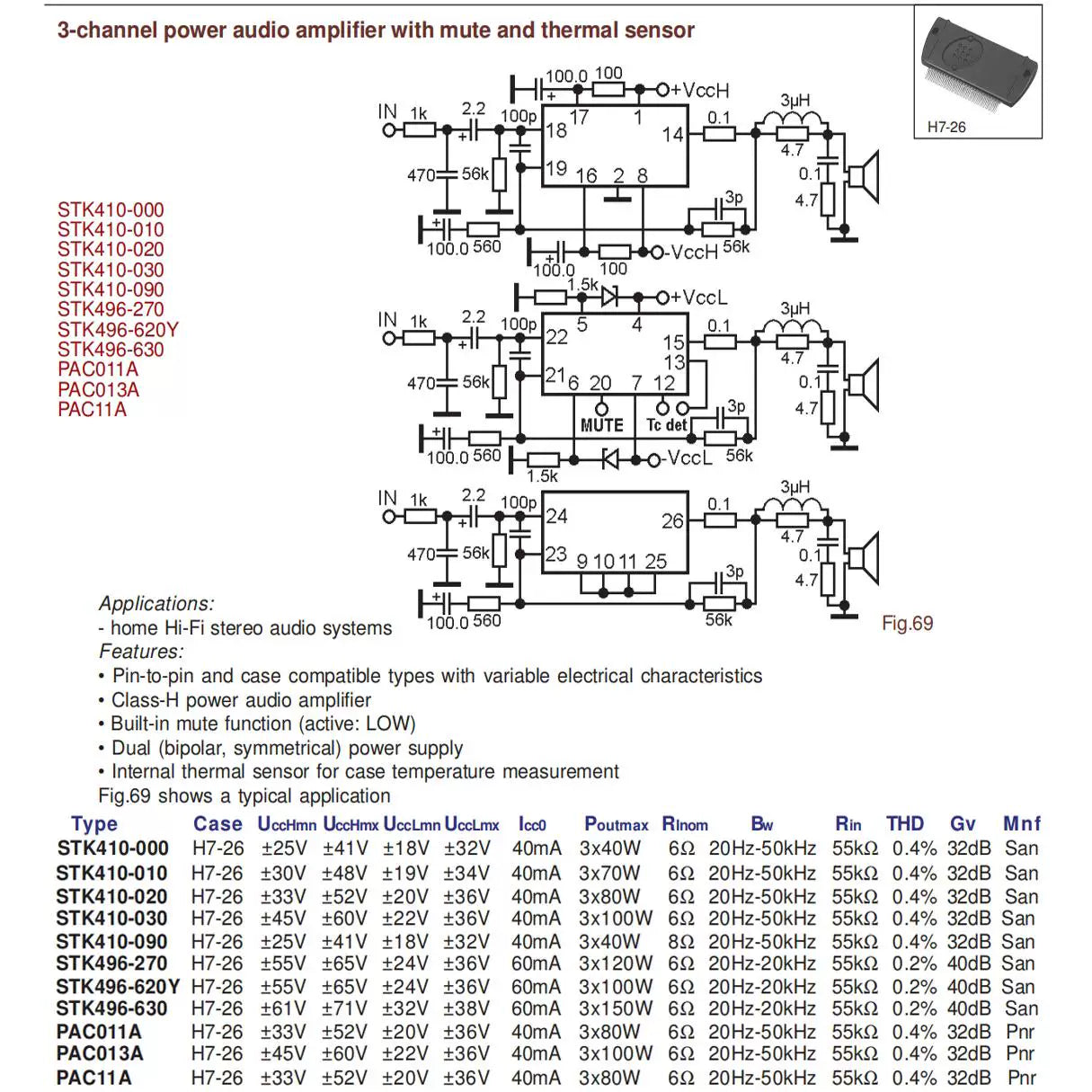

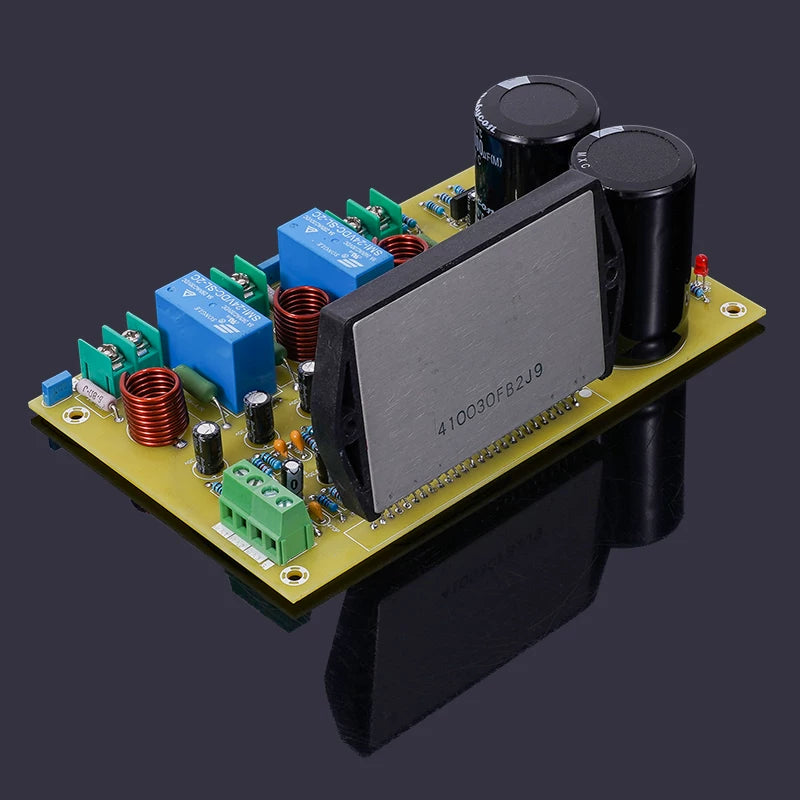

SANYO STK410-030 custom pioneer standard PAC011A thick film power amplifier module 100WX3@6 Europe, the new original fake one penalty ten. Pioneer company looking for SANYO custom thick film power amplifier circuit, all Pioneer company's customized products must be carefully selected and repeatedly compared to determine the circuit structure and sound characteristics. PAC011A is equivalent to SANYO STK410-030, the output power 100WX3@6 Europe, distortion THD0.4%. This series of products sound details, resolution, voice, low frequency strength are better than other series. Module disassembly diagram can see a huge protection chip, and the key parts of the chip are coated with transparent glue protection. Only high-end products in the later stage will do this. It is rare. If you buy it, you will earn it.

Sanyo STK is commonly known as Sanyo Thick Film. Under the control of the tuned sound and high-precision semiconductor process production process, it is not the level that ordinary amateur DIY players can achieve. In addition to better sound field and resolution, the low-frequency strength is much stronger, which is completely the difference between professional athletes and ordinary players! These thick film circuits have always been customized products for big brand audio manufacturers. In the early days, many famous factories used them to manufacture power amplifiers, such as K + H, Sony Sony, Panasonic PANSONIC, Kenwood KENWOOD, JEVIS JVC, Shanshui SANSUI, Sharp SHARP,Pioneer PIONEERAlmost all Japanese audio manufacturers such as Aihua AIWA use it, and it has been used for more than 20 years. It has influenced a whole generation, and it is also a voice with a strong brand of the times that we heard when a whole generation was young. It is unforgettable every time it sounds. Sanyo, a company specializing in the production of power amplifier modules, was later acquired by ON Semiconductor of the United States. After the acquisition, it integrated Sanyo's traditional craftsmanship. Coupled with ON's unique design, the later products were even more outstanding, and are still used by large companies in the United States, such as BOSE and Genelec in Europe!


STK410-030/PAC011A thick film is actually very durable, with good sound details, analytical power, human voice, and low frequency strength.

Basic parameters:

Power supply voltage: AC dual 31V-42V

  Output power: RMS100W * 3 channels6Ω measured continuous maximum output power

  Frequency, sound: 10Hz-40kHz

  Input Sensitivity: 730mV

  Input Impedance: 56K

  Magnification: 31 times

  Lost, True: 0.4%

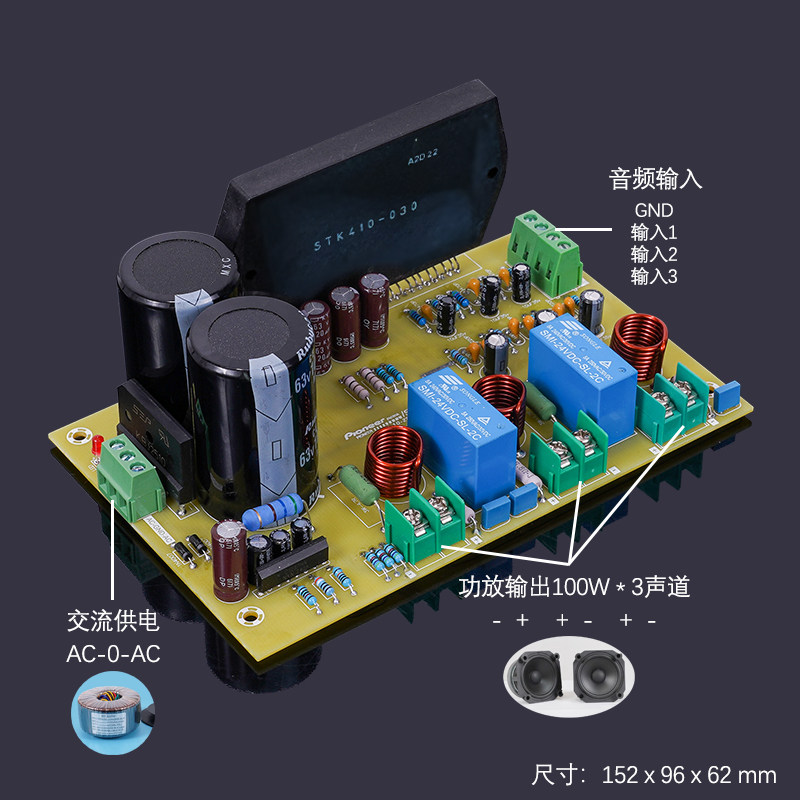

  Size: 152 x 96 x 62MM L x W x H

Weight, quantity: about 270g

  Accessories: copper pillar and nut * 4, long screw * 2

  The default is the finished board, which has been tested before shipment, and the non-human damage is guaranteed for 3 months.

Note: All product pictures, videos, text and other related descriptions are made by a certain period and are for reference only. If there is any change without notice, the specifics are mainly based on the receipt of the actual product.

The materials used are also very particular, and the power supply adopts a high-current rectifier bridge, rubyFilter capacitor, the tone is neutral, and the human voice is more moist and delicate. Each channel is equipped with a large red ring output inductance and has a complete protection circuit.
