STK433-330/130 thick-film module hi-fi audiophile amplifier finished board – 150W+150W stereo

STK433-330 and STK433-130 are thick film power amplifier modules produced by Sanyo. They were originally used in Yamaha RX-V371 combined power amplifiers. They are 3-channel and 2-channel AB class modules respectively. The maximum output power can reach 150W@6 Ω. STK433-130 signal to noise ratio is as low as 0.01%, usually used for stereo. Sound shows good results,The medium and high frequency characteristics are good, the frequency response can reach 50KHz, the resolution is strong, the separation of human voice and musical instrument is excellent, and the low frequency is solid.

This product is a power amplifier board developed based on STK433-330 and STK433-130. The power amplifier board does not contain modules.No accessories included.Without heat dissipation,You need to buy modules and radiators separately to use, no debugging, plug and play.

Output power:

STK433-330 3x150W@6 distortion 0.2% 20Hz-50kHzAC Dual 30-45V;

STK433-130 2x150W@6 Distortion 0.01% 20Hz-50kHzAC Dual 24-36V;

Dimensions:

    STK433-330   180mm x 100mm   400g

    STK433-130   132mm x 84mm  250g

Input Sensitivity: 1V

Input Impedance: 56K

Output impedance: 4-8Ω

    Note: Pay attention to the internal voltage of the capacitor when using high voltage.

This product is not artificially damaged and is guaranteed for 3 months.

Note: All product pictures, videos, text and other related descriptions are made by a certain period and are for reference only. If there is any change without notice, the specifics are mainly based on the receipt of the actual product.

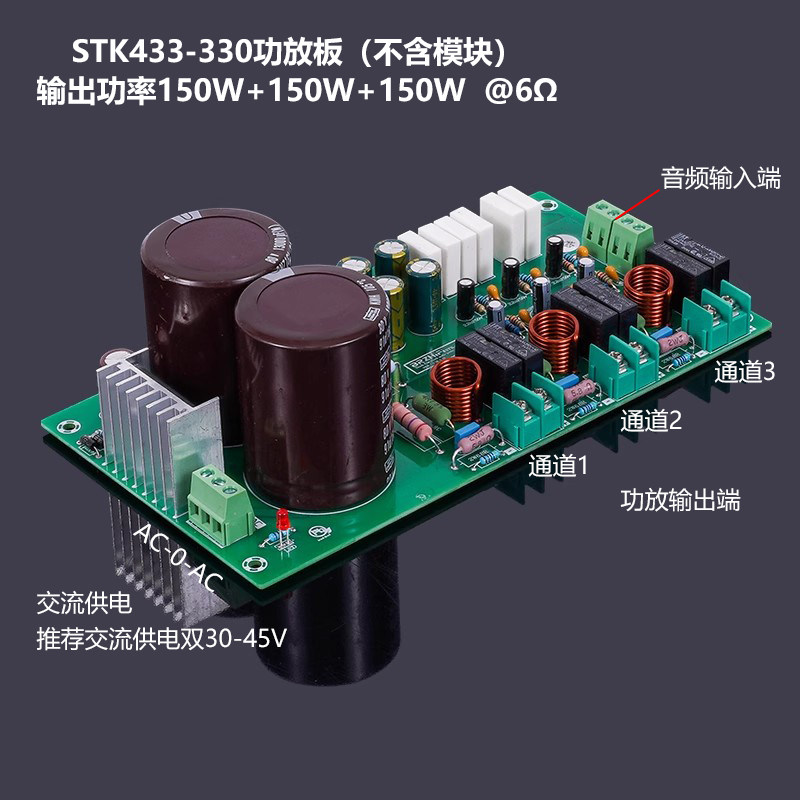

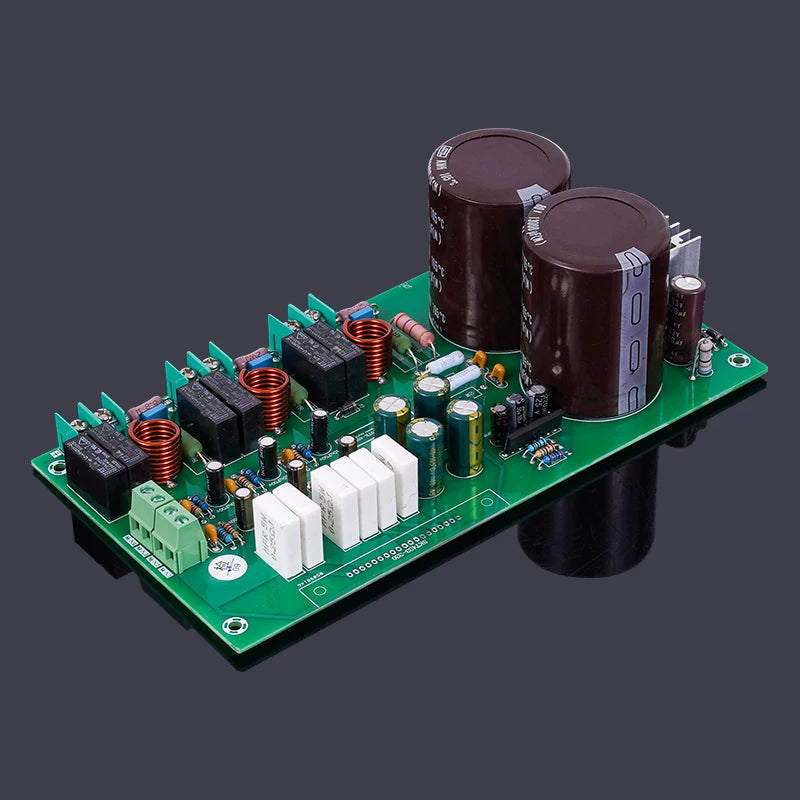

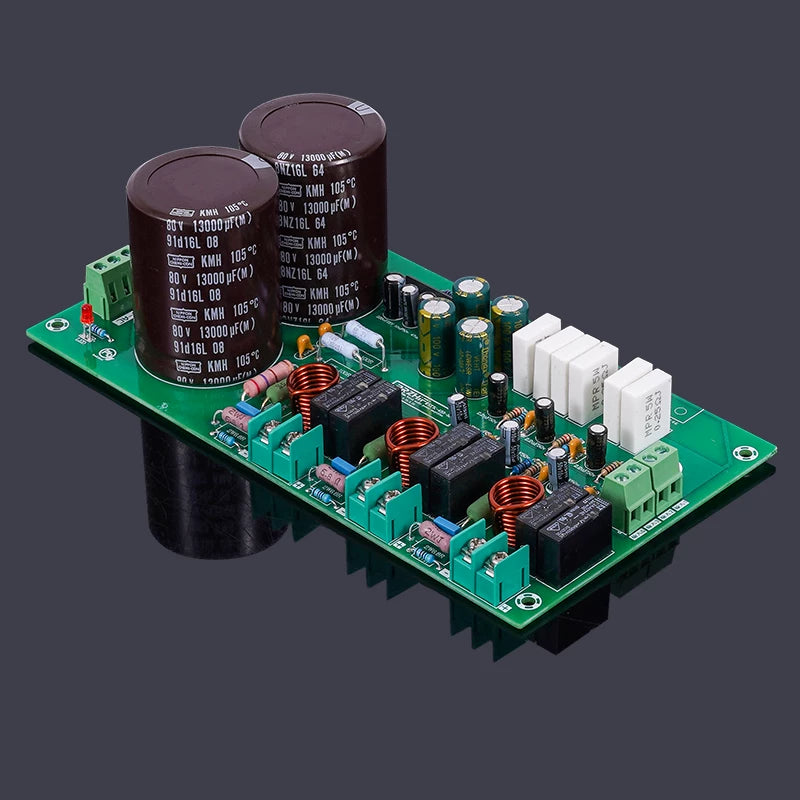

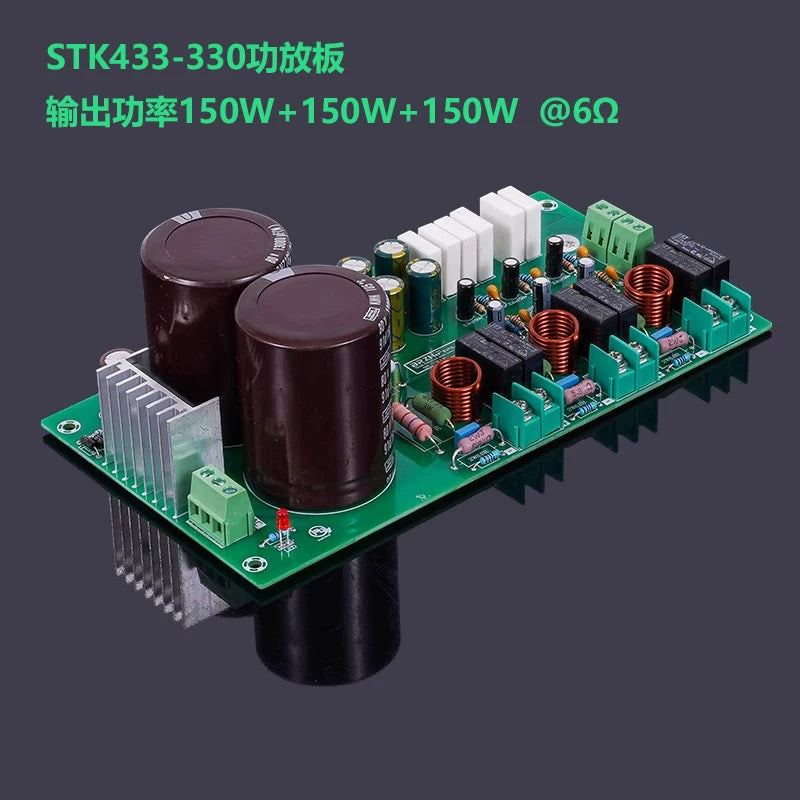

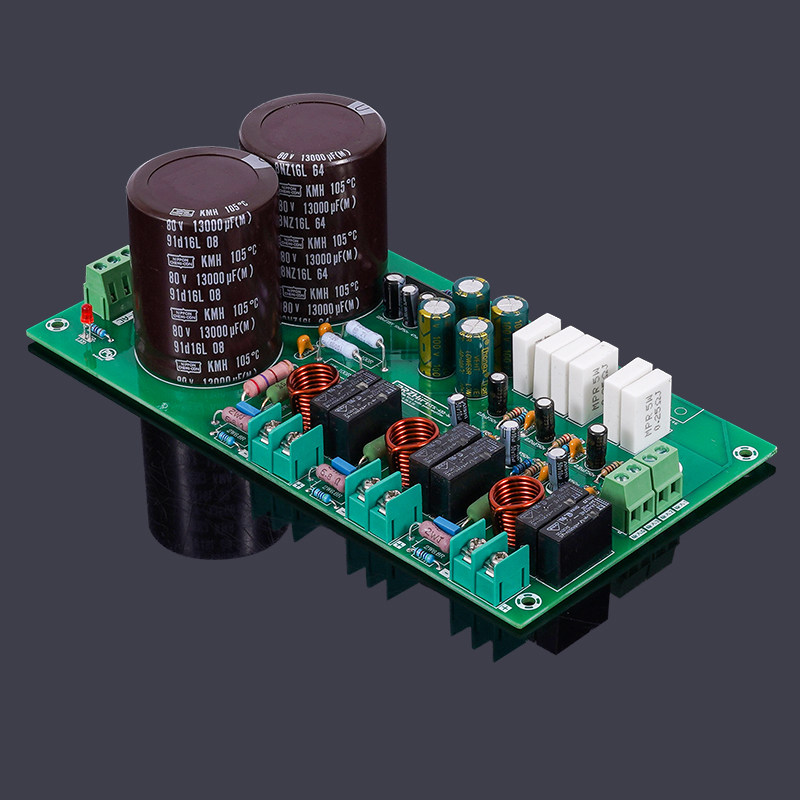

The picture below shows the real shot of the STK433-330 power amplifier board.

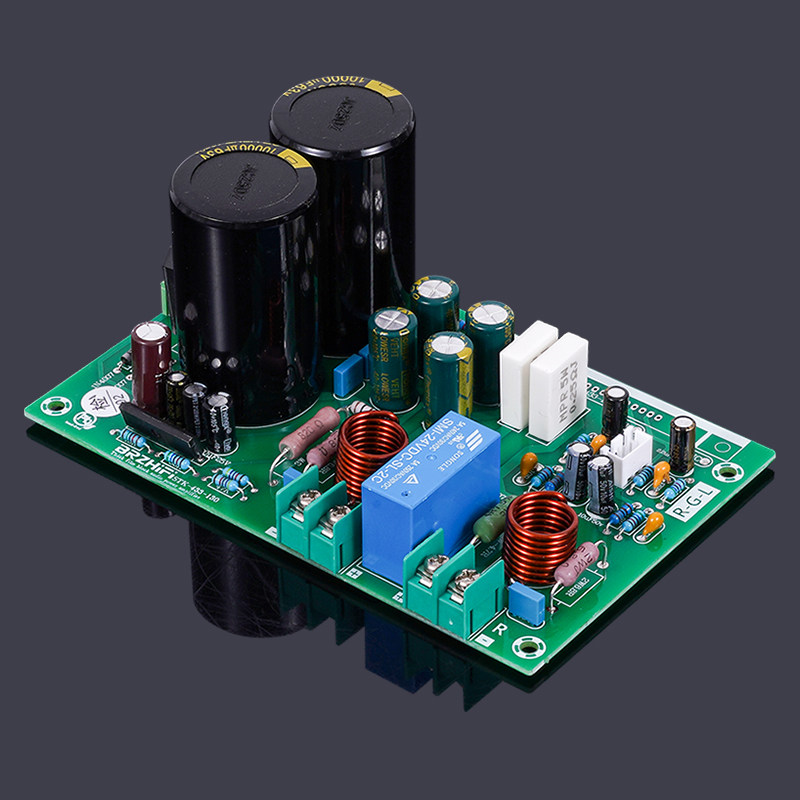

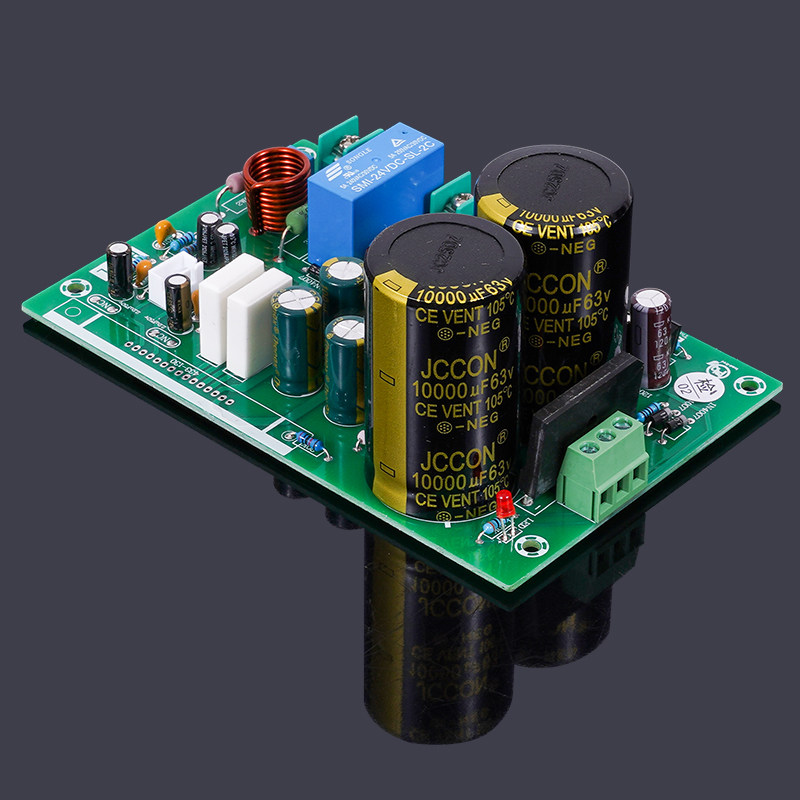

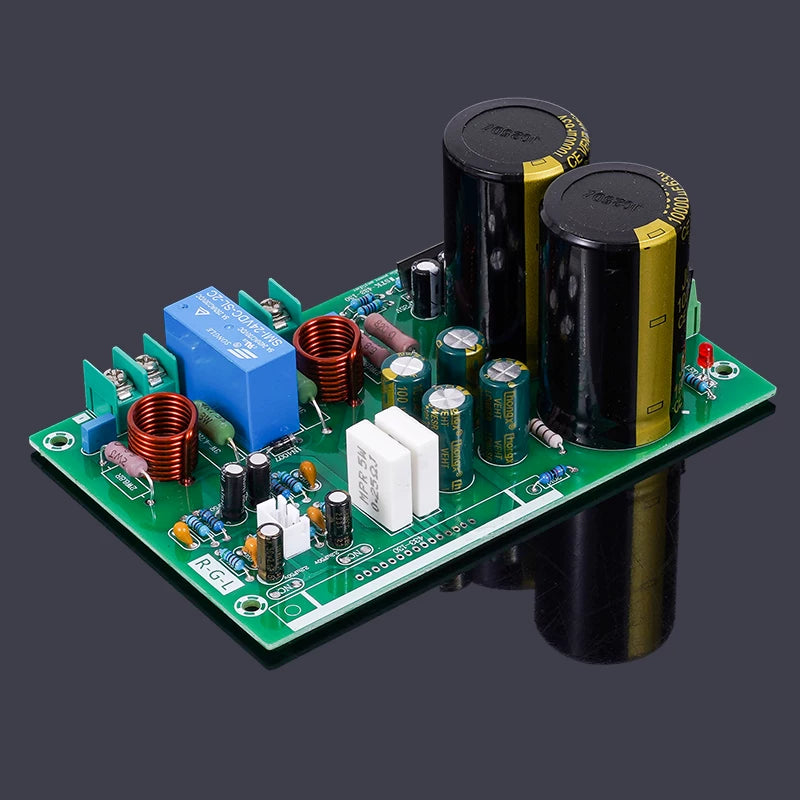

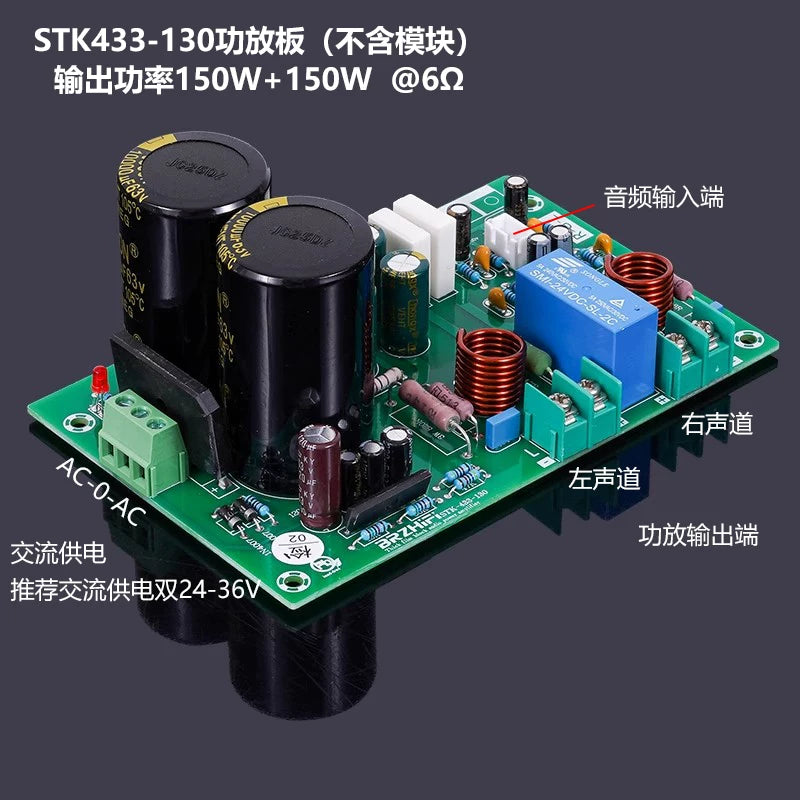

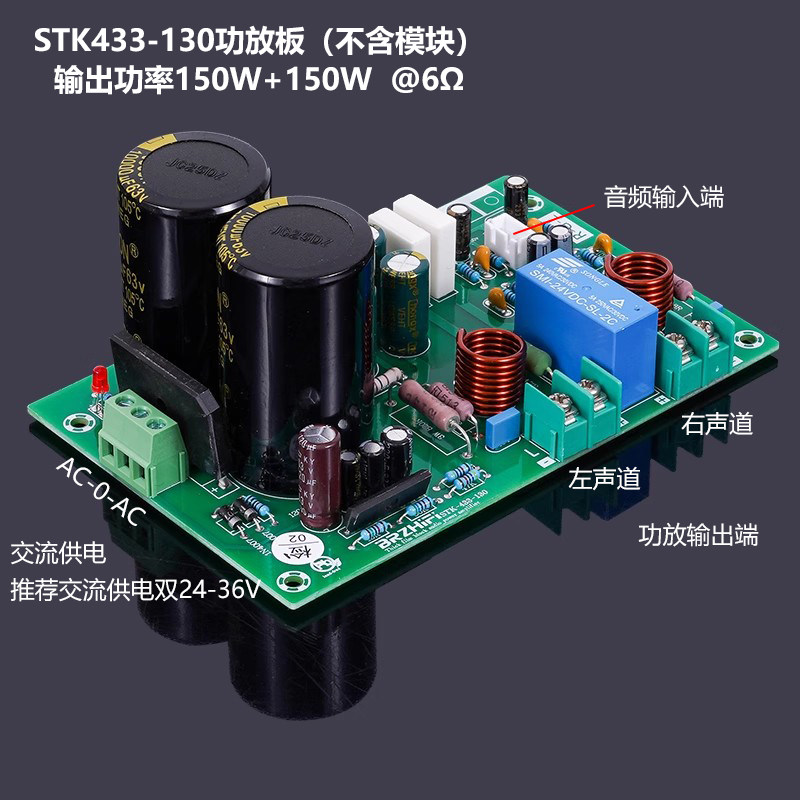

The picture below shows the real shot of the STK433-130 power amplifier board.

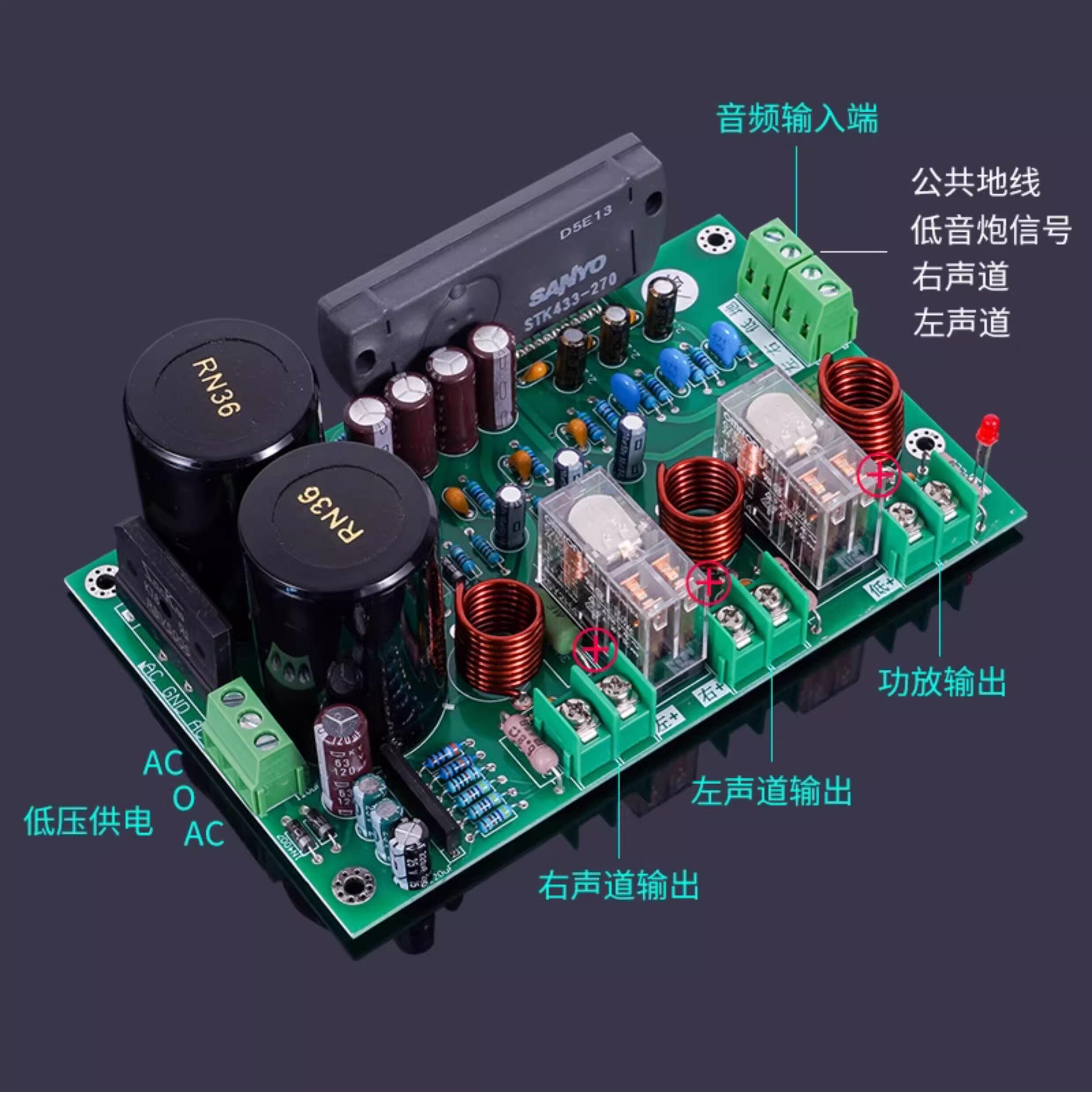

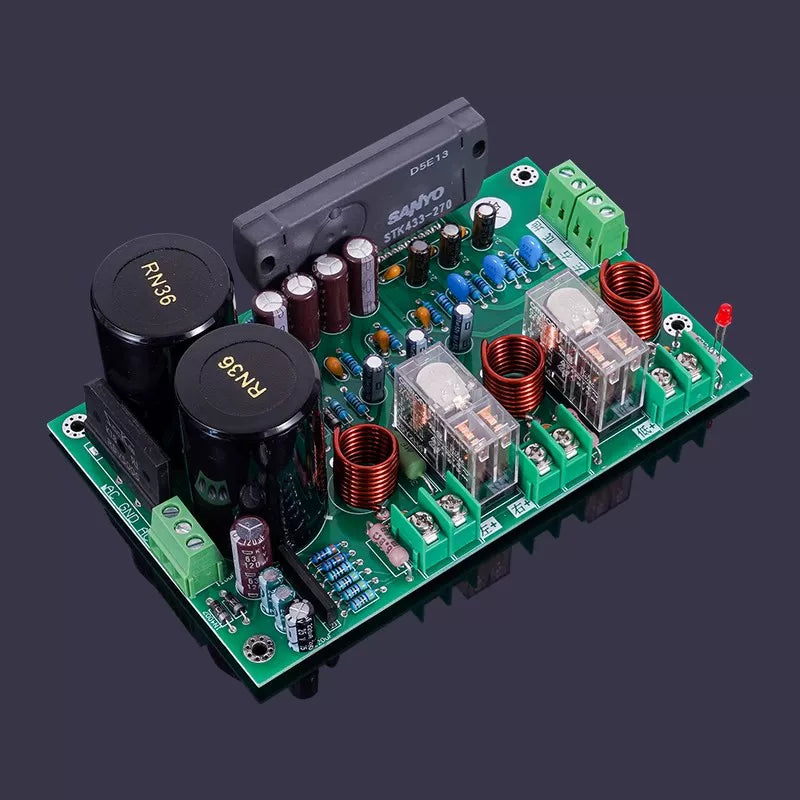

The STK433-270 module is three-channel 60W, and the default full-frequency output signal. When used as a subwoofer, the bass channel needs to beConnect the low pass signal input.

Power supply voltage: AC dual 28-35V,

Output power: 3X60W@6 Ω

Size: 137 * 85mm

Accessories: Copper pillar nut * 4, screw * 2, three-core shielded cable * 1

    Note: The filter capacitor defaults to 50V withstand voltage, and the capacitor needs to be replaced if it is higher than 50V power supply.

The finished board is tested and shipped without heat dissipation, and an additional radiator needs to be added.

This product is not artificially damaged and is guaranteed for 3 months.

Note: All product pictures, videos, text and other related descriptions are made by a certain period and are for reference only. If there is any change without notice, the specifics are mainly based on the receipt of the actual product.
